Seed source for single amplifier and compact front-end of DPSSL.
Robust design of GOpico® fibre oscillator guarantees excellent beam quality and stability. The excellent properties of GOpico® make it our first choice of the seeding source for PERLA lasers. It is also now available as a product for external customers.
GOpico® is a mode-locked all-normal dispersion (ANDi) fibre oscillator with mode locking obtained by nonlinear polarization rotation, and is used as a seed source for single amplifiers and compact front-ends of DPSSLs.
2–6 ps
pulse duration
20–40 MHz
repetition rate
1 nJ
energy per pulse
<1%
power stability

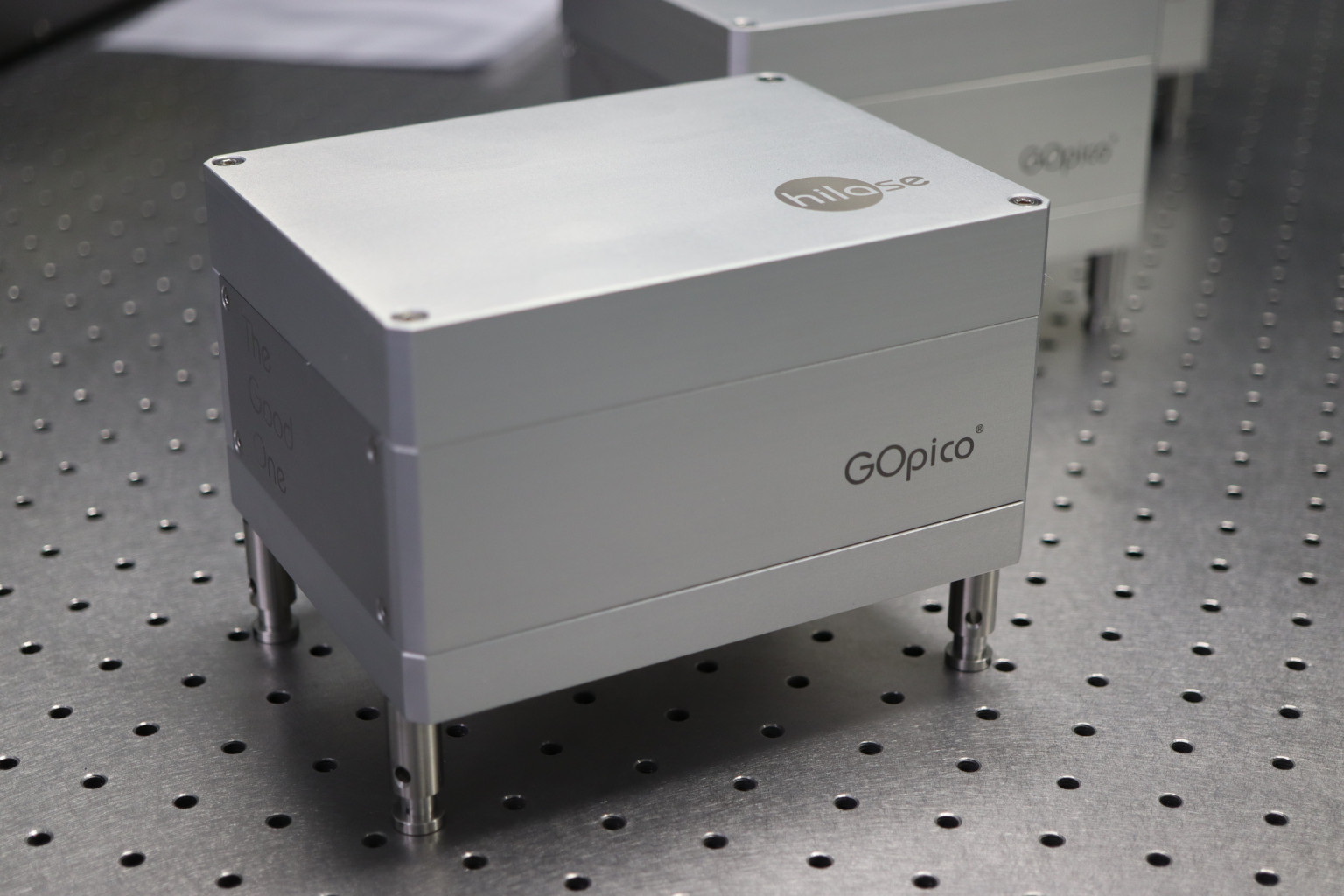

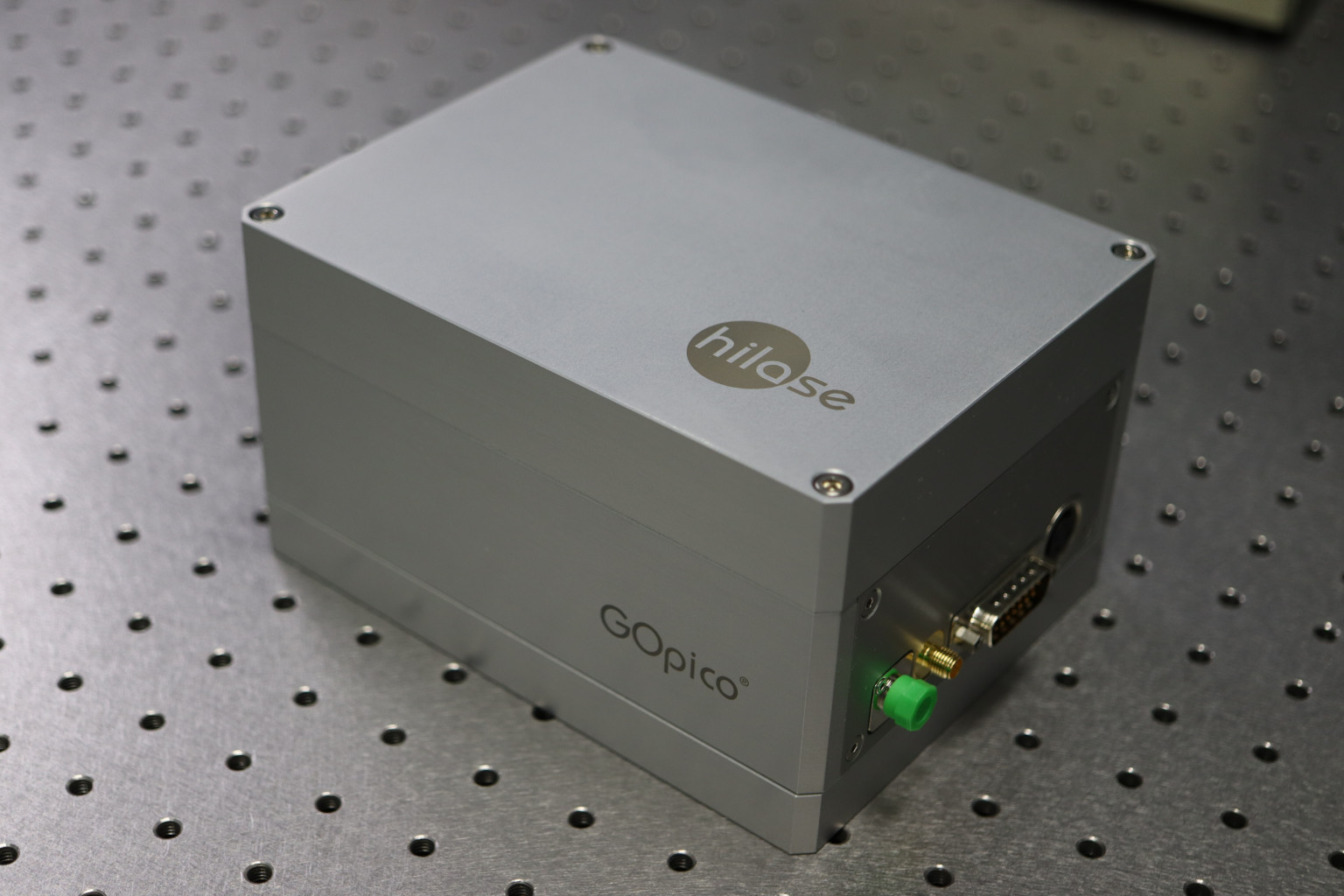

GOpico® fibre oscillator
Why choose HiLASE GOpico® fibre oscillator
- Robust & compact design
- High beam quality
- Stable and reliable seed source
- Proven and tested in our own laser systems
- State of the art system
Technical specifications
| OPTICAL | GOpico® | GO2micro |
|---|---|---|
| Wavelength [nm] | 1030 | 2072 |
| Energy per pulse [nJ] | > 1 | < 1 |
| Output power [mW] | 30 | 10 |
| Pulse duration [ps] | 6 | < 2 |
| Repetition rate [MHz] | 20 – 40 | 20 |
| Power stability RMS [%] | < 1 | < 1 |
| Bandwidth [nm] | < 15 | < 4 |
| External interfaces | Fibre-coupled output, FC/APC, | trigger output SMA connector |
| MECHANICAL | ||
| Dimensions [mm3] | 170 x 130 x 96 | 170 x 130 x 96 |
| Cooling | passive | passive |
Operating requirements
| Operating voltage [VDC] | 5 | |
|---|---|---|
| Power consumption [W] | < 30 | |
| Operating temeperature [°C] | 22 ± 0.5 | |
| Relative humidity [%] | 20 – 50 (non-condensing) |
Optional features
- GOfemto
- Built-in photodiode with SMA connector for external synchronization
- Frequency stabilization
Contact us
Ready to explore the potential of GOpico® fibre oscillator or just need to know more? Please contact us here or at solutions(at)hilase.cz, and we can start creating your solution together.
